Vector Conveyors & Recycling

The toughest machines in their class
Request a Quote

Vector machines are engineered to excel in the most challenging conditions, precisely when you need them most. With over 20 years of industry experience, Vector is renowned for crafting the highest quality machines that consistently surpass industry standards.

Operating from an impressive 11-acre manufacturing facility, Vector has been at the forefront of material processing and handling systems. Their exceptional machines have contributed to successful projects across the USA, Canada, Mexico, the Caribbean, Latin America, and Africa.

The Vector by MGL range of equipment comprises a comprehensive selection, catering to material processing industries. From versatile conveyors to portable (tracked or wheeled) systems and advanced recycling systems, Vector’s lineup delivers cutting-edge solutions to meet diverse material processing needs. Count on Vector’s machines to withstand the harshest conditions and empower your operations with unparalleled performance and reliability.



WHEELED CONVEYORS

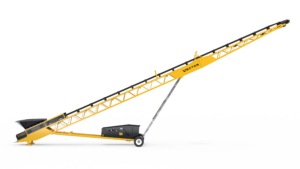

VX80

General Specifications

  • Transport Length: 53’5″
  • Transport Width: 8.5’
  • Transport Height: 11′ 10″
  • Working Length: 80’
  • Working Width: 8.5’
  • Working Height (max): 35′
  • Weight (lbs.): 25,000
  • Engine: Kohler KDI 1903

VX80R

General Specifications

  • Transport Length: 53′ 5″
  • Transport Width: 10’
  • Transport Height: 11′ 10″
  • Working Length: 80’
  • Working Width: 10’
  • Working Height (max): 35′
  • Weight (lbs.): 20,000
  • Engine: Kohler KDI 1903
REQUEST A QUOTE

TRACK CONVEYORS

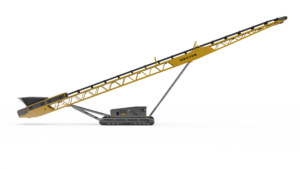

VT80

General Specifications

  • Transport Length: 53’5″
  • Transport Width: 8.5’
  • Transport Height: 11′ 10″
  • Working Length: 80’
  • Working Width: 8.5’
  • Working Height (max): 35′
  • Weight (lbs.): 25,000
  • Engine: Kohler KDI 1903

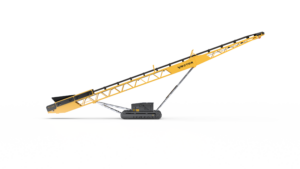

VT65

General Specifications

  • Transport Length: 45′ 5″
  • Transport Width: 8’
  • Transport Height: 11′ 4″
  • Working Length: 65’
  • Working Width: 8’
  • Working Height (max): 26.6′
  • Weight (lbs.): 22,000
  • Engine: Kohler KDI 1903

VT50

General Specifications

  • Transport Length: 52.2’
  • Transport Width: 8’
  • Transport Height: 8′ 11″
  • Working Length: 50’
  • Working Width: 8’
  • Working Height (max): 22’ 6″
  • Weight (lbs.): 14,000
  • Engine: Kohler KDW-1404
REQUEST A QUOTE

FEEDER & STACKERS

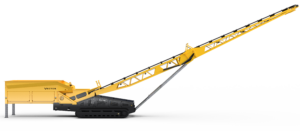

SITE BOSS

General Specifications

  • Transport Length: 57’ 8”
  • Transport Width: 10’
  • Transport Height (Axle): N/A
  • Transport Height (Low Boy): 13’
  • Working Length: 88’
  • Working Width: 10’
  • Working Height (min/max): 13’/33’ 8”
  • Weight (lbs.): 45,000
  • Engine: Perkins 1204F (110 HP)
REQUEST A QUOTE

COLORING & COATING

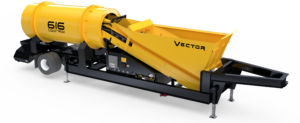

616

General Specifications

  • Total weight 28,000 lbs (approx.)
  • Transport/Overall Length 44’ 6″
  • Transport Height 11’ 10”
  • Transport/working width 8’ 6”
  • Loading height 13′ 6″
  • Hopper Capacity 10’ CY (approx.)
  • Anti-bridging Auger in Hopper (Mulch applications)
  • Mixing Drum Length 16’
  • Mixing Drum Diameter 6′
  • Power Unit: Kohler KDI1903 TCR 56 HP Tier 4 Engine
  • Production Capacity: 250 YPH

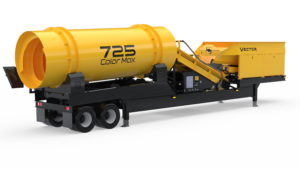

725

General Specifications

  • Total weight 48,000 lbs (approx.)
  • Transport/Overall Length 53’
  • Transport Height 13’ 6”
  • Transport/working width 8’ 6”
  • Loading height 11’ 6” – 12’ 6”
  • Hopper Capacity 14’ CY (approx.)
  • Anti-bridging Auger in Hopper (Mulch applications)
  • Mixing Drum Length 25’
  • Mixing Drum Diameter 7’ 4”
  • Power Unit: Cummins 2.8L 74 HP Tier 4 Engine
  • Production Capacity: 300+ YPH
REQUEST A QUOTE

RECYCLING

VACMAX

General Specifications

  • Drive: Hydraulic (15-25 GPM, 1200-2000 PSI)
  • Drive: Electric (15 HP, VFD recommended)
  • Max Fan Speed: 1200 RPM
  • Rotor Blades: HD Rubber (replaceable)
  • Standard and Custom Mounting Shrouds
  • Weight: 1050 lbs.

Options

  • 16″ x 20′ Corrugated ducting
  • Power Unit: Kohler KDW1404 24HP Diesel, skid-mounted
REQUEST A QUOTE
