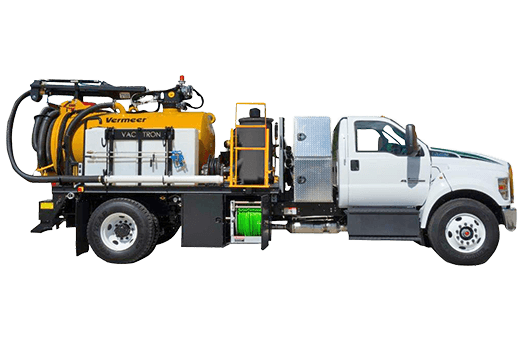

The jetter truck vac (JTV) 873 series is a PTO truck-driven system available on Ford chassis. This full line of JTV is available with an 800-gal (3,028.3-L) debris tank and 400 gal (1,514 L) of water. The PTO of the truck drives positive displacement vacuum blowers that produce 1,000 cfm (1,699 m3/hr) along with high-pressure jetter capabilities putting this truck in a league of its own.
| Manufacturer | Vermeer |
| Model | JTV873 PTO Vacuum Excavator |
| Category | Fluid Management, Landscape, Renewable Energy, Rental, Utility Installation, Vacuum Excavation |
| Price | Request a Quote |
| Year | 2024 |
| Number of Tanks | 2 |
| High Pressure Pump | 3000 psi (206.8 bar) |
| High pressure hose length | 425 ft (130 m) |
| Low Water Shutoff | Electric |
| Water capacity | 400 gal (1514 L) |
| High pressure pump flow rate | 15 gpm (57 L/min) |
| Spoil tank capacity | 800 gal (3028.3 L) |
| Door type | Hydraulic |
| Tank Lift Type | Scissor lift |
| Type of Filters | Cartridge filter 0.5 microns |
| Hose length | 30 ft (9 m) |
| Air flow | 1000 cfm (28 cubic m/min) |
| Vacuum blower type | PD blower |
| Vacuum | 16 inHg (0.6 bar) |
| Hose width/diameter | 4 in (10.2 cm) |
| Controls | Curbside |
| Movement | 330 deg |
| Remote Control | Wireless |
| Reach | 15 ft (4.6 m) |
| Availability | Optional |
| Weight | 400 lb (181 kg) |
| Water pressure | 3000 psi (206.8 bar) |
| Jetter hose length | 425ft (129.5m) |
| Jetter hose diameter | .5in (1.3cm) |
| Water flow | 15 gpm (57 L/min) |
| Length | 345 in (876.3 cm) |
| Width | 102 in (259 cm) |
| Height | 120 in (305 cm) without boom |
| Empty weight | 16500 lb (7451.6 kg) |
| Gross Vehicle Weight Rating (GVWR) | 26000 lb (11,793 kg) |
| Truck model | Ford F-650 |
| Engine model | PTO driven |
| Length | 345 in (876.3 cm) |
| Width | 102 in (259 cm) |
| Empty weight | 18000 lb (8165 kg) |
| Height | 120 in (305 cm) without boom |
| Gross Vehicle Weight Rating (GVWR) | 33000 lb (14969 kg) |
| Truck model | Ford F-750 |
| Engine model | PTO driven |
| Hot box | Optional |
| Strong arm | Optional |
| Recirculation kit | Optional |
| Reverse Pressure | Standard |
